SMT Stencil Laser Cutting Machine

SC-G6080
Equipment Functions and Parameters
Equipment functional requirements :
Stainless steel laser stencil cutting machine mainly realizes: SMT stencil cutting, precision steel sheet cutting, micro-hole processing of stainless steel precision components, manual carrier loading, CCD positioning, laser cutting.
Module Functions and Technical Standards

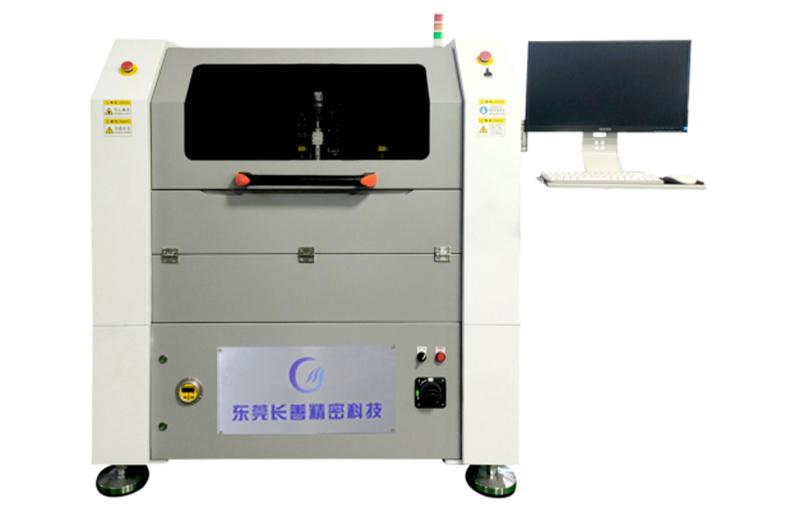

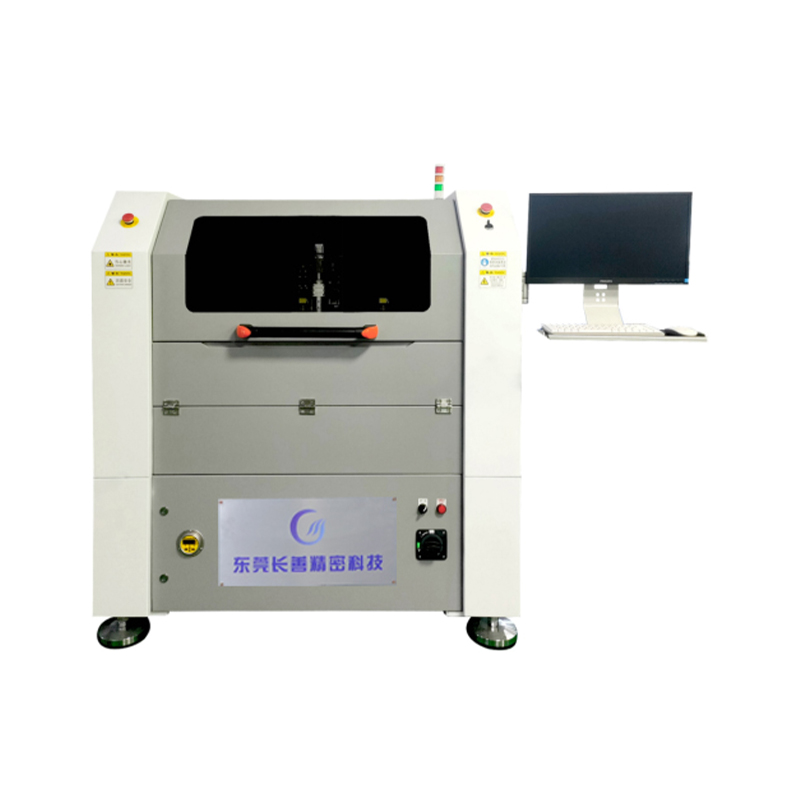

1. The overall appearance of the machine is as follows :

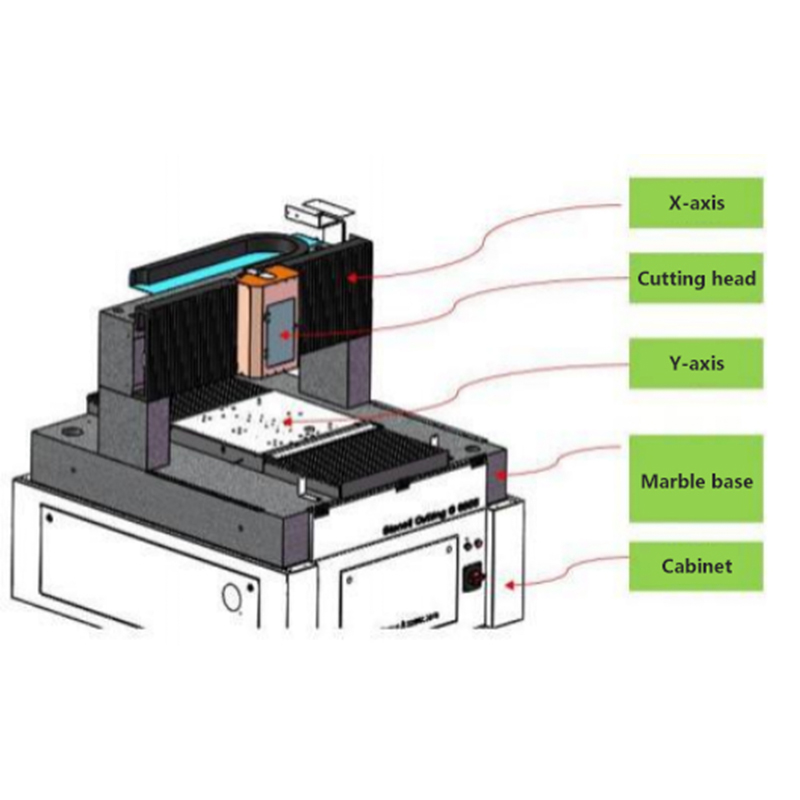

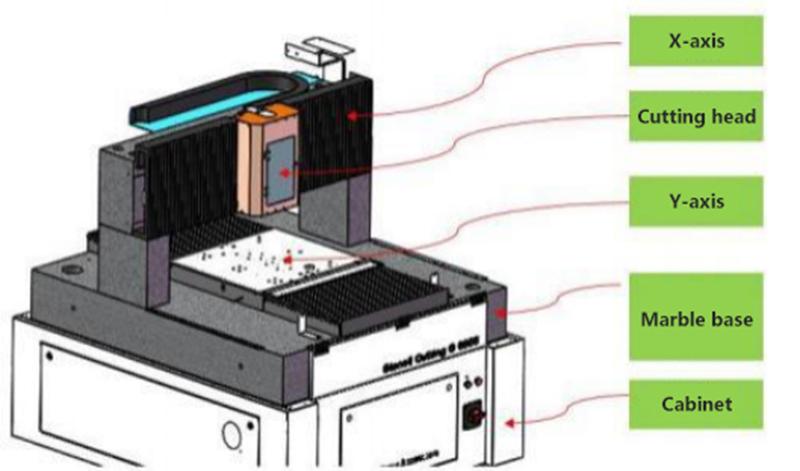

2.The equipment layout is as follows :

1)  Equipment function: Specifications are as follows

Brand and parameters

Model

SC-G6080

Laser source brand

IPG

Motion controller

LATECH

XY  Driver  brand

copley

Grating  ruler  brand

Renishaw UK/0. 1μm

Guide  rail brand

HIWIN Taiwan

ZU Servo motor  brand

Panasonic

Equipment structure

Bridge structure

Cutting accuracy

±0.005mm

Cutting  line width

0.018mm

Laser  power

100W

Wavelength

1070nm

Beam quality

M ² <1.1

Working area

600mm*800mm

Max framed stencil size

740X1500X40mm

Max stencil sheet size

680mm*720mm

Cutting thickness

0.02mm≤T≤1mm

Cutting speed

About  15000 -20000

Overall dimension

1840mm* 1380mm* 1500mm

Weight

2500Kg

Positioning accuracy

±2μm

Repeatability

±2μm

Supply voltage

220V

Power consumption

3KW

Operating software

HKStudio

Cutting file format

LMC  ,LMD、 CNC、 DXF  ,STC TCM

Auxiliary cutting gas

Industrial oxygen7-10Kg,compressed air  16Kg

Main  material

 savageness granite

Height adjuster

Automatic rangefinder

Correction of hole  position

Auto Hole Patch,Fully automatic vision

CCD positioning accuracy

0.02mm

Z - axis accuracy

< 0.1mm

Vision System

Hikvision

Environment temperature/ humidity

23 ~25℃/humidity less than 50%

×
