Brand and parameters | |

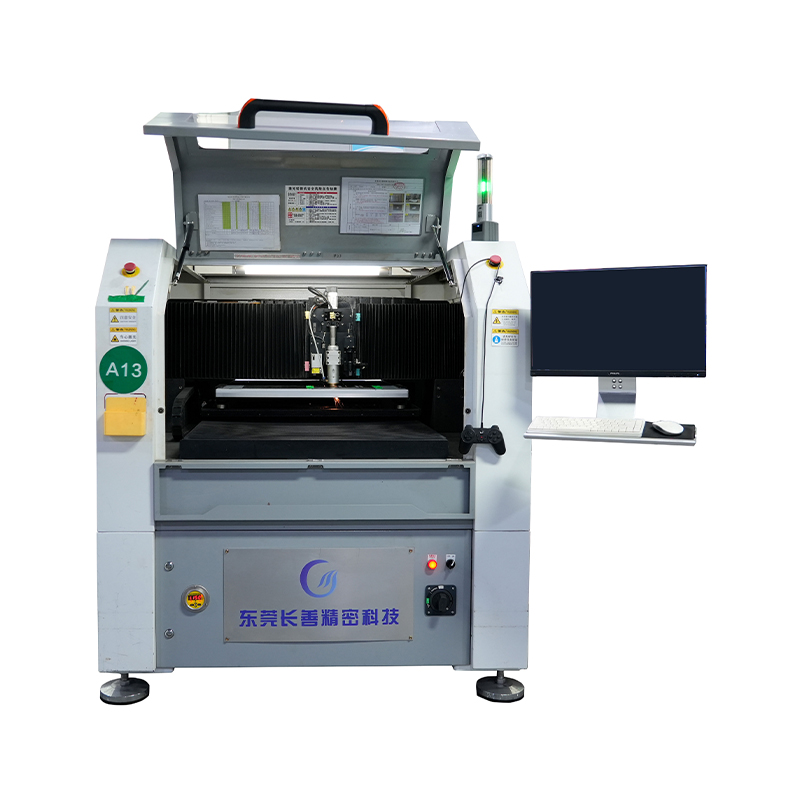

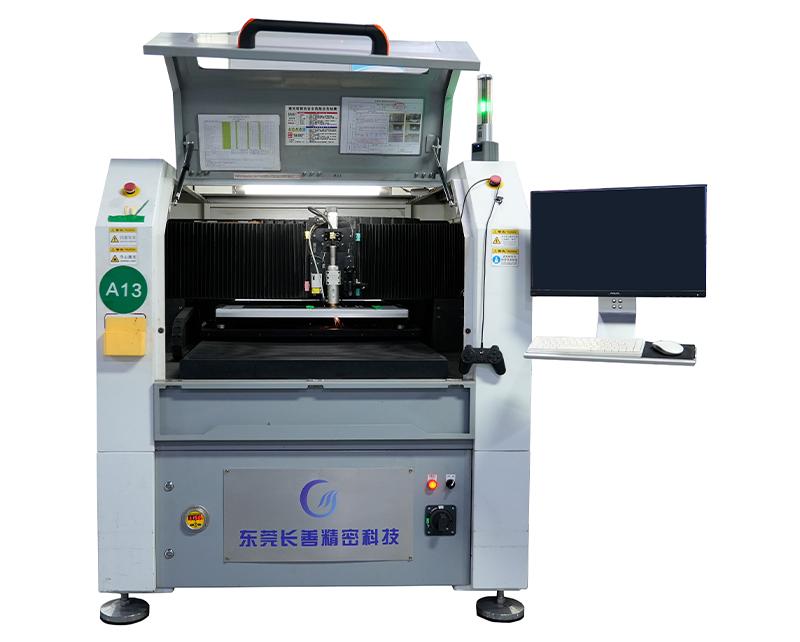

Model | SC-G6060 |
Laser source brand | IPG |
Motion controller | LATECH |
XY Driver brand | copley |
Grating ruler brand | Renishaw UK/0. 1μm |
Guide rail brand | HIWIN Taiwan |
ZU Servo motor brand | Panasonic |
Equipment structure | Bridge structure |
Cutting accuracy | ±0.005mm |
Cutting line width | 0.018mm |
Laser power | 100W |
Wavelength | 1070nm |
Beam quality | M ² <1.1 |
Working area | 600mm*600mm |
Max framed stencil size | 740X1500X40mm |
Max stencil sheet size | 680mm*720mm |
Cutting thickness | 0.02mm≤T≤0.5mm |
Cutting speed | About 15000 -20000 |
Overall dimension | 1640mm* 1380mm* 1500mm |
Weight | 2200Kg |
Positioning accuracy | ±2μm |
Repeatability | ±2μm |
Supply voltage | 220V |
Power consumption | 3KW |
Operating software | HKStudio |
Cutting file format | LMC ,LMD、 CNC、 DXF ,STC ,TCM |
Auxiliary cutting gas | Industrial oxygen7-10Kg,compressed air 16Kg |
Main material | savageness granite |
Height adjuster | Automatic rangefinder |
Correction of hole position | Auto Hole Patch,Fully automatic vision |
CCD positioning accuracy | 0.02mm |
Z - axis accuracy | < 0.1mm |
Vision System | Hikvision |
Environment temperature/ humidity | 23 ~25℃/humidity less than 50% |
