F6080 Gantry Dual Drive Laser Cutting Machine

F6080

Equipment functions and parameters
Equipment functional requirements:
The main body is the F6080 gantry dual-drive laser cutting machine, which mainly realizes: cutting of metal materials such as steel, aluminum, copper, etc. of different thicknesses, equipped with CCD positioning.
Equipment parameters
UPH (Output Capacity ): 24 m/min
Equipment failure rate: ≤1%
Factory building weight: < 800Kg /㎡
Equipment size : 1600mm * 1500mm * 1600mm
Equipment operating conditions
Rated air pressure: 0.7 Mpa - 2.0 Mpa
Working voltage: 380V , smoke machine: 380V
Ambient temperature: 10℃-40℃
Relative humidity: monthly average humidity maximum 50 %
Module functions and technical standards

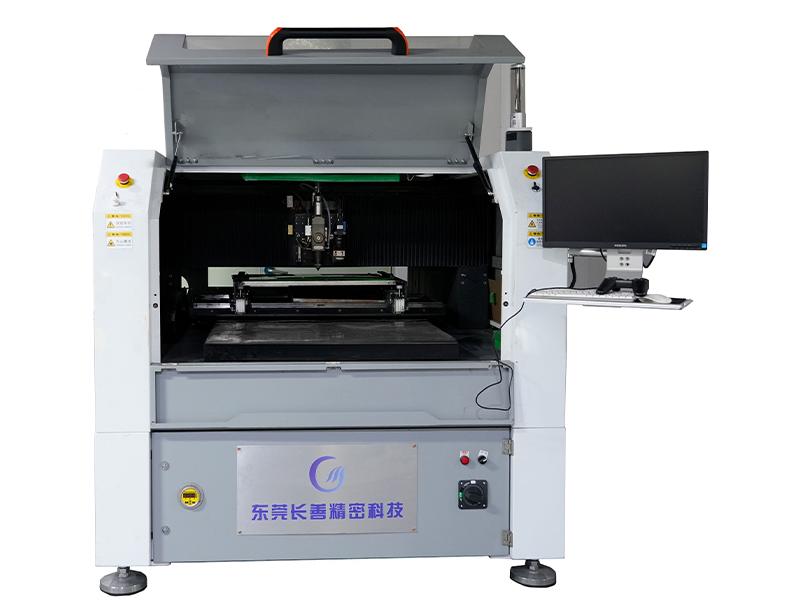

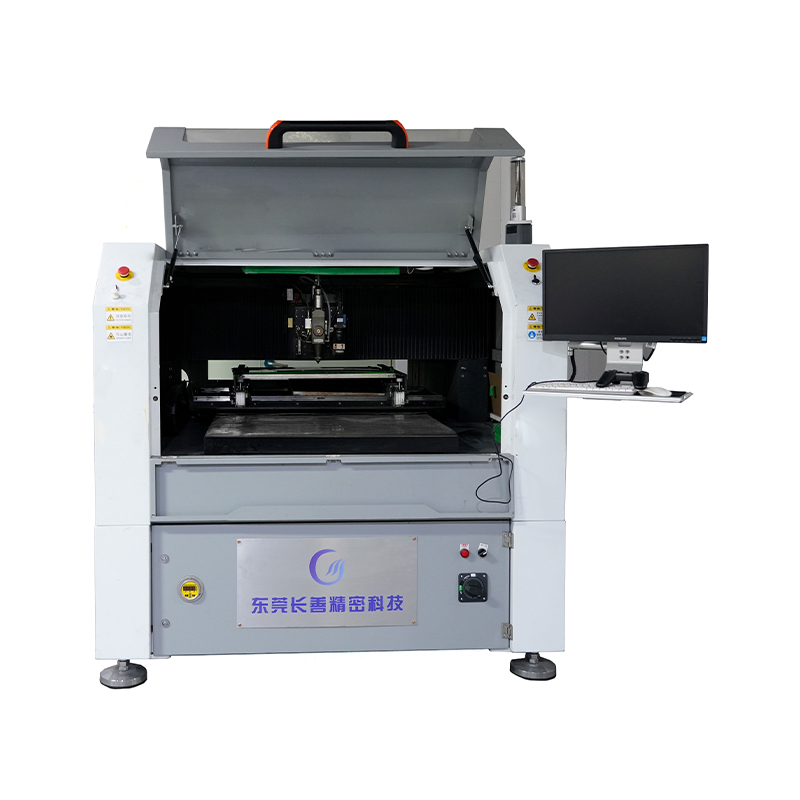

1. The appearance of the device is as follows:

1)Equipment function: Specifications are as follows

Brand and parameters

Warranty

Model

F6080

1 year

Laser brand

Keplin

2 years

Motion controller brand

Latech

1 year

XY Driver brand

copley

1 year

ruler brand

Dalian Banyan Tree

1 year

Guide rail brand

Hiwin

1 year

ZU Servo motor brand

Panasonic

1 year

Equipment structure

Double drive gantry

1 year

Cutting accuracy

±20μm



line width

0.05-0.1mm



Laser power

30 00W



Wavelength

1070nm



Beam quality

M²<1.1















Cutting thickness

0.1 mm≤T≤3.0 mm



Cutting speed m / min

24 m/min



Overall dimension

1600mm * 1500mm * 1600mm



Equipment weight

About 20 00Kg



Positioning accuracy

±2μm



Repeat positioning accuracy

(Repeated positioning accuracy)

±2μm



Input power (Supply voltage)

38 0V



Power consumption

3 KW



Upper computer

Adavantech



Operating software

HKStudio



Cut document

LMC, LMD, CNC, DXF, STC, TCM



Auxiliary cutting gas

Industrial oxygen 10kg

Compressed air 16kg



Main material

Natural granite (savageness granite)



positioning accuracy

0.01mm



Z -axis accuracy

Less than 0.01mm



Ambient temperature/ humidity

24~26℃/humidity below 50%

Electrical control system
The equipment control system uses an I/O communication system with an axis control board as the core, and controls various types of machinery or production processes through user-oriented instructions such as counting and arithmetic operations, and through digital or analog input/output.

Serial number

Part Name

Specification

brand

Warranty

1

Motion control card

Latech Customization

Latech

1 year

2

Marble sports platform

XY-680* 6 80

Latech

1 year

3

Cutting head

3000W

Jiaqiang

1 year

4

Laser

3000W

Keplin



5

Servo motor and driver

100W / 400W

cop l e y

1 year

6

camera

1.3 million pixels

Hikvision

1 year

7

Lenses

ML-15

Zhicheng

1 year

8

Industrial Computer

IPC-510MB-25ZF/I 5 - 24 00/501G2/ 8 G/ 500G SSD /Win 7

Advantech

1 year

9

monitor

19 inches

Philips

1 year

10

Screw guide rail

Various

Hiwin

1 year

11

cylinder



AirTac

1 year

×
